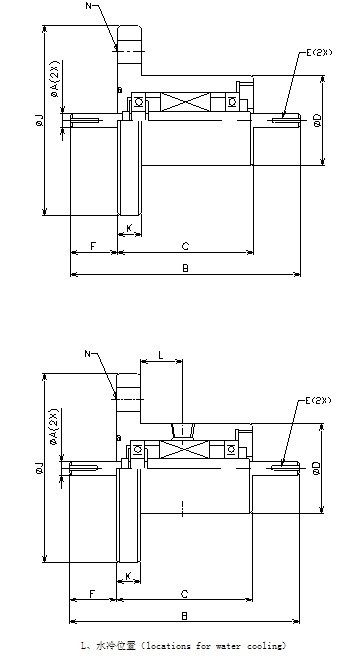

型号Model Number |
VGSFL006NN |
VGSFL010NN |
VGSFL015NN |
VGSFL020NN |
VGSFL025NN |
|
A |
6 |
10 |
12 |
20 |
25 |
|
B |
97.5 |
119.5 |
133.5 |
151.5 |
173.5 |
|
C |
57.5 |
69.5 |
73.5 |
81.5 |
93.5 |
|
D |
38 |
44 |
48 |
63 |
75 |
|
E |
0.5DpX12Lg(Flat) |
3WX1.8DpX14Lg |
4WX2.5DpX20Lg |
6WX3.5DpX25Lg |
8WX4DpX30Lg |
|
F |
20 |
25 |
30 |
35 |
40 |
|
J |
78 |
78 |
88 |
105 |
115 |
|
K |
10 |
10 |
10 |
10 |
10 |
|
N |
PD60/4-φ10 |
PD60/4-φ10 |
PD70/4-φ10 |
PD85/4-φ10 |
PD95/6-φ10 |
|
允许传送扭矩
Torque capacity[kg.cm] |
9.2 |
59 |
118 |
585 |
1013 |
耐真空度
Degree of vacuum pressure [Pa] |
10-6 |
允许氦泄漏量
Leakage rate(He)[Pa.m3/sec] |
<10-12 |
使用温度范围
Temperature range(℃ |
0～80
(超出该范围可采用水冷结构
(Adding water cooling structure if it is beyond this temperature
range.)> |
